Compressed air machines

The pneumatic screwdriver offers maximum safety: ATEX and IP6 (dust-proof) certified EX I M2 / II 2GD c IIB 95°C X.
The ultimate performance with powerful 1085 Nm enables the drill to achieve 1200 blows/minute.
The reliable steel motor is combined with a long-lasting double hammer impact mechanism in an oil bath and has been installed in a steel impact mechanism housing for the highest quality.

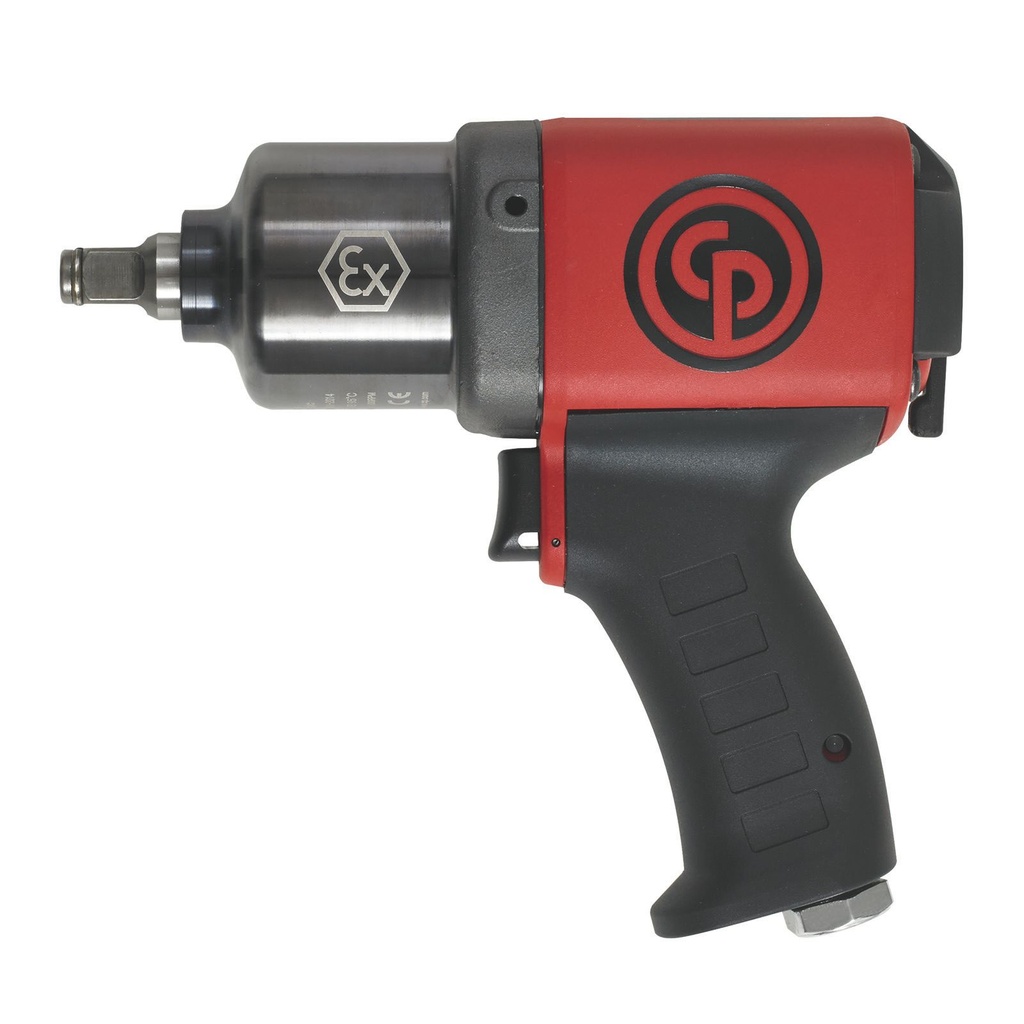

The pneumatic screwdriver offers maximum safety: ATEX and IP6 (dust-proof) certified EX I M2 / II 2GD c IIB 135°C X.
Thanks to its ultimate performance with a powerful 1750 Nm, the impact wrench achieves 1050 blows/minute.
The reliable steel motor is combined with a long-lasting double-hammer impact mechanism in an oil bath and has been installed in a steel impact mechanism housing for the highest quality.

Technical data
Output: 3/4 inch with hole and friction ring
Blows per minute: 1050
Idle speed: 5100 min-1
Working torque (forward): 400 to 1400 Nm
Maximum torque (reverse): 1750 Nm
Net weight: 4.4 kg
Overall length: 250 mm
Air consumption under load: 18 l/s
Sound pressure: 94 dB(A)
Air inlet: 3/8”

The pneumatic screwdriver offers maximum safety: ATEX and IP6 (dust-proof) certified EX I M2 / II 2GD c IIB 135°C X.
Thanks to the ultimate performance with a powerful 1400 Nm, the drill achieves 1050 blows/minute.
The reliable steel motor is combined with a long-lasting double hammer impact mechanism in an oil bath and has been installed in a steel impact mechanism housing for the highest quality.

Technical data:
Blows per minute: 1050
Clutch housing: Steel
Handle type: Pistol
Percussion mechanism: Double hammer percussion mechanism
Drive type: Sq
Type of clutch lubrication: in oil bath

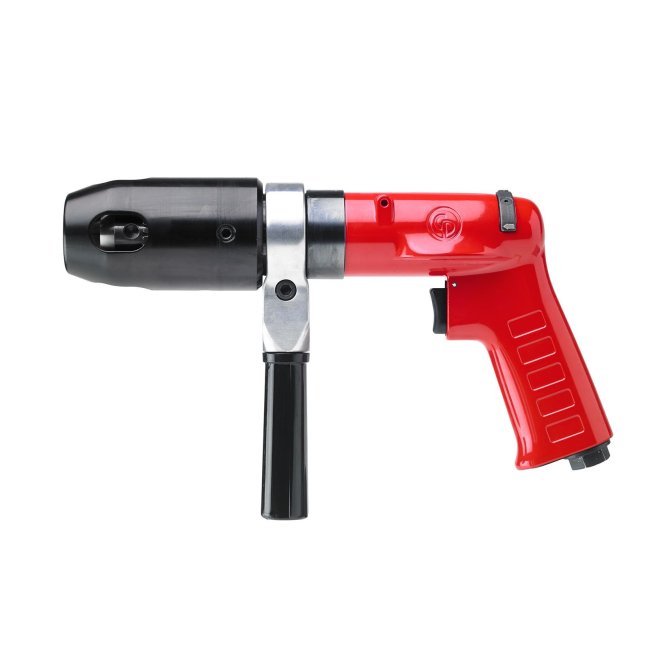

A reversible drill bit with 500 rpm for drilling is equipped with a side handle and can be used for a wide range of applications, such as drilling, tapping and reaming.
It offers high precision and comfortable handling.

Technical data:
Stalling torque 25.2 N.m
Width 57.4 mm
Height 151.7 mm
Actual air consumption 720 l/mn
Clamping sleeve/spindle size 3/8-24 ”
Air inlet thread size 1/4 ”
Length 278.1 mm
Noise level 82 dB(A)
Min. hose size 10 mm
Sound power 93 dB(A)
Chuck capacity 13 mm”
Power 410 W
Stepless speed 500 min -1
Vibration - ISO ISO-28927-5
Vibration K 1.1 m/s²

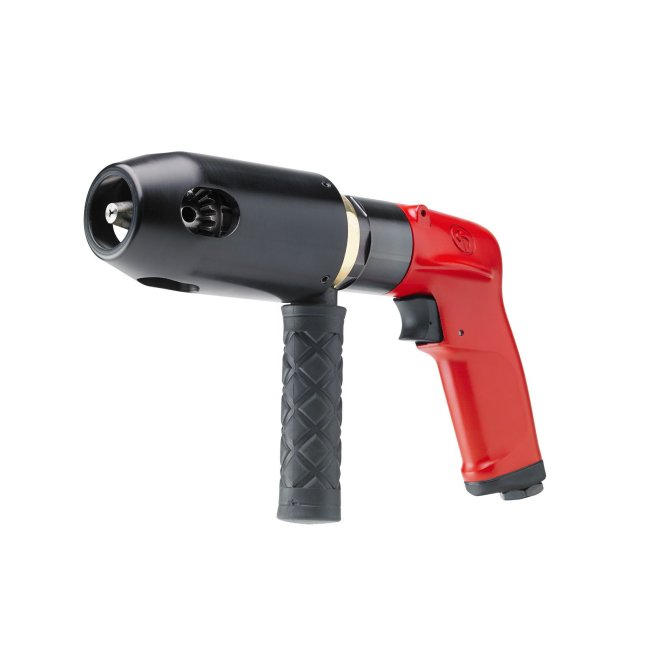

A reversible drill with 2600 rpm is used for drilling, tapping and reaming in ATEX environments.
The drill is equipped with a side handle and can be used for a wide range of applications, such as drilling, tapping and reaming.
The drill is characterized by its high precision and comfortable handling.

Technical data:
Stalling torque 25.2 N.m
Width 57.4 mm
Noise 3 dB(A)
Height 151.7 mm
Actual air consumption 720 l/mn
Clamping sleeve/spindle size 3/8-24”
Air inlet thread size 1/4”
Length 278.1 mm
Noise level 82 dB(A)
Min. hose size 10 mm
Sound power 93 dB(A)
Chuck capacity 10 mm”
Power 410 W
Stepless speed 500 min -1
Vibration - ISO ISO-28927-5
Vibration K 1.1 m/s²

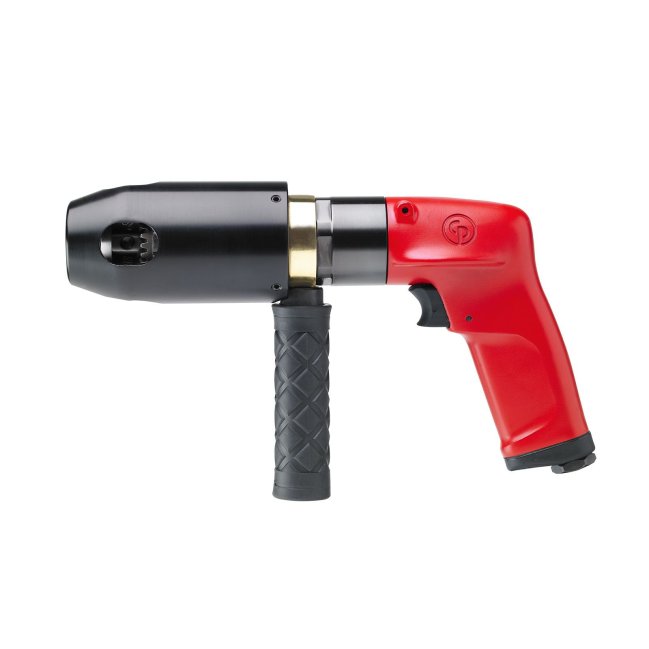

A reversible drill with 500 rpm is used for drilling, tapping and reaming in ATEX environments. The drill is equipped with a side handle.
It is versatile and can be used for drilling, tapping and reaming operations, for example.
The drill is characterized by its high precision and comfortable handling.

Technical data:
Stalling torque 30 N.m
Width 61.8 mm
Noise 3 dB(A)
Height 150.87 mm
Actual air consumption 834 l/mn
Air inlet thread size 1/4”
Air consumption Free speed 16.1 l/s
Length 268.26 mm
Min. hose size 10 mm
Net weight 2.25 kg
Sound power 95 dB(A)
Chuck capacity 13 mm”
Power 750 W
Stepless speed 500 min -1
Vibration 2.6 m/s²

The ATEX-certified 10 mm drill is equipped with a Jacob's industrial chuck.
The reversible drill with a side handle is used for drilling, tapping and reaming in ATEX environments.
It is versatile and can be used for drilling, tapping and reaming operations, for example.
The drill is characterized by its high precision and comfortable handling.

Technical data:
Width 61.8 mm
Noise 3 dB(A)
Thread type NPTF
Height 150.87 mm
Actual air consumption 834 l/mn
Clamping sleeve/spindle size 3/8-24”
Air inlet thread size 1/4”
Air consumption Free speed 16.1 l/s
Length 268.26 mm
Noise level 84 dB(A)
Min. hose size 10 mm
Net weight 2.25 kg
Sound power 95 dB(A)
Chuck capacity 13 mm”
Power 750 W
Vibration 2.6 m/s²

The CP1117P26 ATEX drill is equipped with a Jacob's industrial chuck.
The reversible drill with 2600 rpm is used for drilling, tapping and reaming in ATEX environments.
It is versatile and can be used for drilling, tapping and reaming operations.
The drill is characterized by its high precision and comfortable handling.

Technical data:
Stalling torque 30 N.m
Width 61.8 mm
Height 150.87 mm
Actual air consumption 834 l/mn
Clamping sleeve/spindle size 3/8-24 ”
Air inlet thread size 1/4 ”
Air consumption Free speed 16.1 l/s
Length 268.26 mm
Noise level 84 dB(A)
Min. hose size 10 mm
Net weight 2.25 kg
Sound power 95 dB(A)
Chuck capacity 13 mm”
Power 750 W
Stepless speed 500 min -1
Vibration 2.6 m/s²
