Compressed air machines

The pneumatic screwdriver offers maximum safety: ATEX and IP6 (dust-proof) certified EX I M2 / II 2GD c IIB 95°C X.
The ultimate performance with powerful 1085 Nm enables the drill to achieve 1200 blows/minute.
The reliable steel motor is combined with a long-lasting double hammer impact mechanism in an oil bath and has been installed in a steel impact mechanism housing for the highest quality.

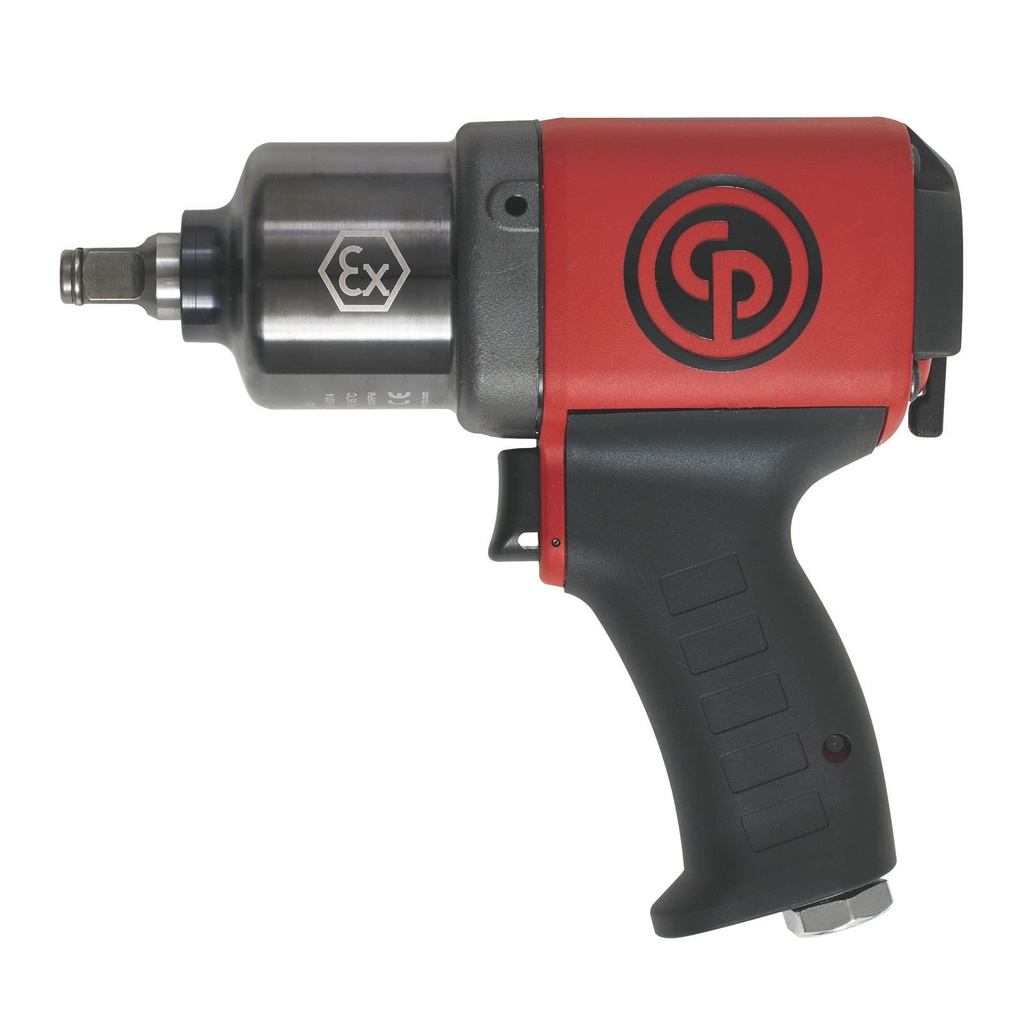

The pneumatic screwdriver offers maximum safety: ATEX and IP6 (dust-proof) certified EX I M2 / II 2GD c IIB 135°C X.
Thanks to its ultimate performance with a powerful 1750 Nm, the impact wrench achieves 1050 blows/minute.
The reliable steel motor is combined with a long-lasting double-hammer impact mechanism in an oil bath and has been installed in a steel impact mechanism housing for the highest quality.

Technical data
Output: 3/4 inch with hole and friction ring
Blows per minute: 1050
Idle speed: 5100 min-1
Working torque (forward): 400 to 1400 Nm
Maximum torque (reverse): 1750 Nm
Net weight: 4.4 kg
Overall length: 250 mm
Air consumption under load: 18 l/s
Sound pressure: 94 dB(A)
Air inlet: 3/8”

The pneumatic screwdriver offers maximum safety: ATEX and IP6 (dust-proof) certified EX I M2 / II 2GD c IIB 135°C X.
Thanks to the ultimate performance with a powerful 1400 Nm, the drill achieves 1050 blows/minute.
The reliable steel motor is combined with a long-lasting double hammer impact mechanism in an oil bath and has been installed in a steel impact mechanism housing for the highest quality.

Technical data:
Blows per minute: 1050
Clutch housing: Steel
Handle type: Pistol
Percussion mechanism: Double hammer percussion mechanism
Drive type: Sq
Type of clutch lubrication: in oil bath

Trapano reversibile (2600 giri/min) per forature, filettature e alesature in ATEX. Impugnatura laterale per presa precisa e utilizzo versatile.

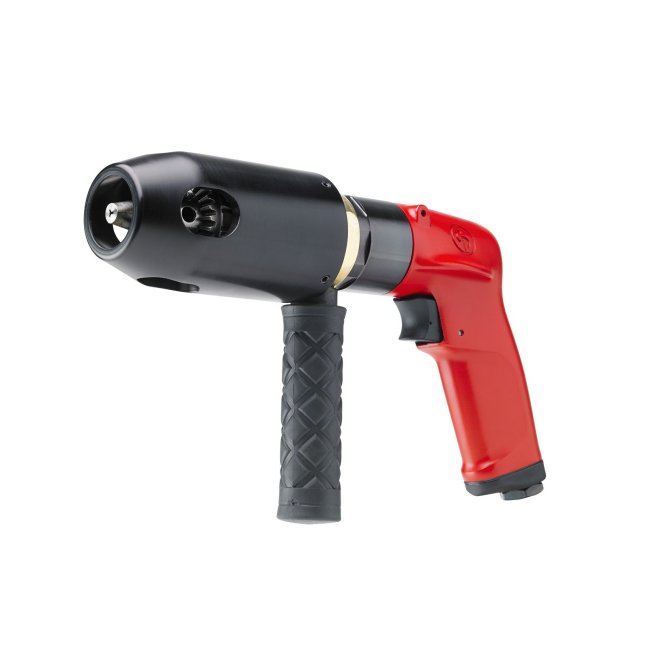

A reversible drill bit with 500 rpm for drilling is equipped with a side handle and can be used for a wide range of applications, such as drilling, tapping and reaming.
It offers high precision and comfortable handling.

Technical data:
Stalling torque 25.2 N.m
Width 57.4 mm
Height 151.7 mm
Actual air consumption 720 l/mn
Clamping sleeve/spindle size 3/8-24 ”
Air inlet thread size 1/4 ”
Length 278.1 mm
Noise level 82 dB(A)
Min. hose size 10 mm
Sound power 93 dB(A)
Chuck capacity 13 mm”
Power 410 W
Stepless speed 500 min -1
Vibration - ISO ISO-28927-5
Vibration K 1.1 m/s²

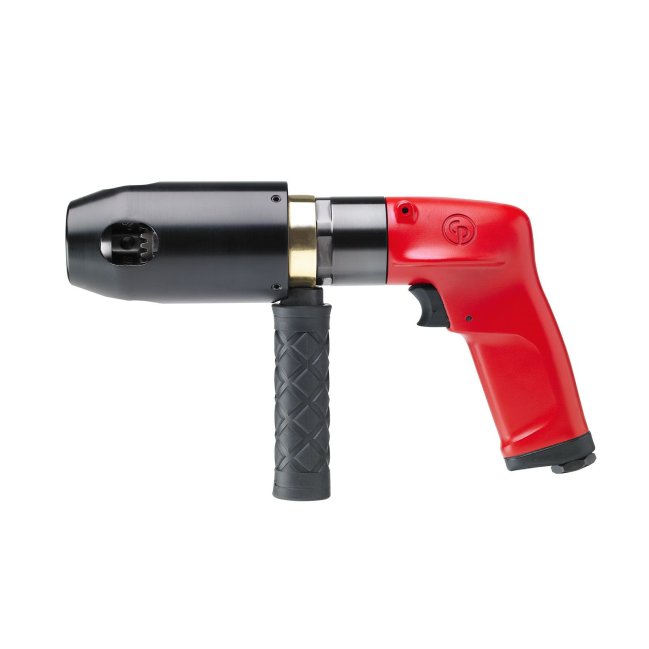

The CP1117P26 ATEX drill is equipped with a Jacob's industrial chuck.

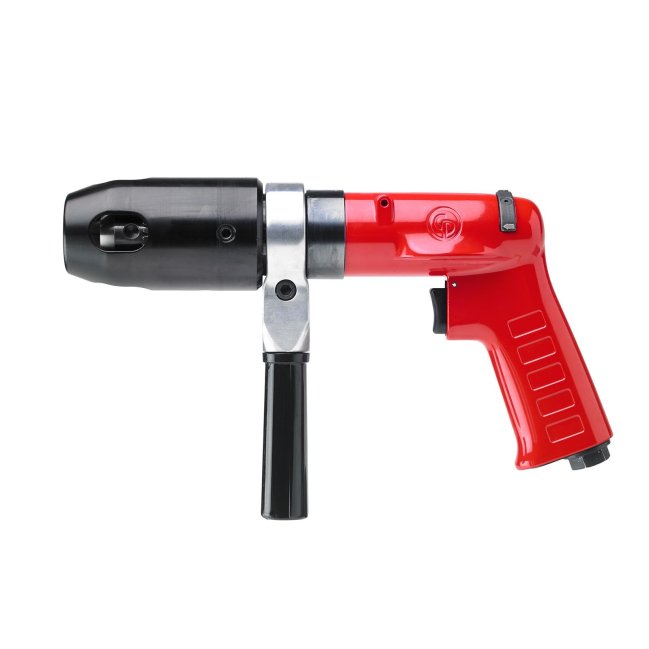

The reversible drill with 2600 rpm is used for drilling, tapping and reaming in ATEX environments.
It is versatile and can be used for drilling, tapping and reaming operations.
The drill is characterized by its high precision and comfortable handling.

Technical data:
Stalling torque 30 N.m
Width 61.8 mm
Height 150.87 mm
Actual air consumption 834 l/mn
Clamping sleeve/spindle size 3/8-24 ”
Air inlet thread size 1/4 ”
Air consumption Free speed 16.1 l/s
Length 268.26 mm
Noise level 84 dB(A)
Min. hose size 10 mm
Net weight 2.25 kg
Sound power 95 dB(A)
Chuck capacity 13 mm”
Power 750 W
Stepless speed 500 min -1
Vibration 2.6 m/s²

The ATEX-certified 10 mm drill is equipped with a Jacob's industrial chuck.
The reversible drill with a side handle is used for drilling, tapping and reaming in ATEX environments.
It is versatile and can be used for drilling, tapping and reaming operations, for example.
The drill is characterized by its high precision and comfortable handling.

Technical data:
Width 61.8 mm
Noise 3 dB(A)
Thread type NPTF
Height 150.87 mm
Actual air consumption 834 l/mn
Clamping sleeve/spindle size 3/8-24”
Air inlet thread size 1/4”
Air consumption Free speed 16.1 l/s
Length 268.26 mm
Noise level 84 dB(A)
Min. hose size 10 mm
Net weight 2.25 kg
Sound power 95 dB(A)
Chuck capacity 13 mm”
Power 750 W
Vibration 2.6 m/s²

A reversible drill with 500 rpm is used for drilling, tapping and reaming in ATEX environments. The drill is equipped with a side handle.
It is versatile and can be used for drilling, tapping and reaming operations, for example.
The drill is characterized by its high precision and comfortable handling.

Technical data:
Stalling torque 30 N.m
Width 61.8 mm
Noise 3 dB(A)
Height 150.87 mm
Actual air consumption 834 l/mn
Air inlet thread size 1/4”
Air consumption Free speed 16.1 l/s
Length 268.26 mm
Min. hose size 10 mm
Net weight 2.25 kg
Sound power 95 dB(A)
Chuck capacity 13 mm”
Power 750 W
Stepless speed 500 min -1
Vibration 2.6 m/s²

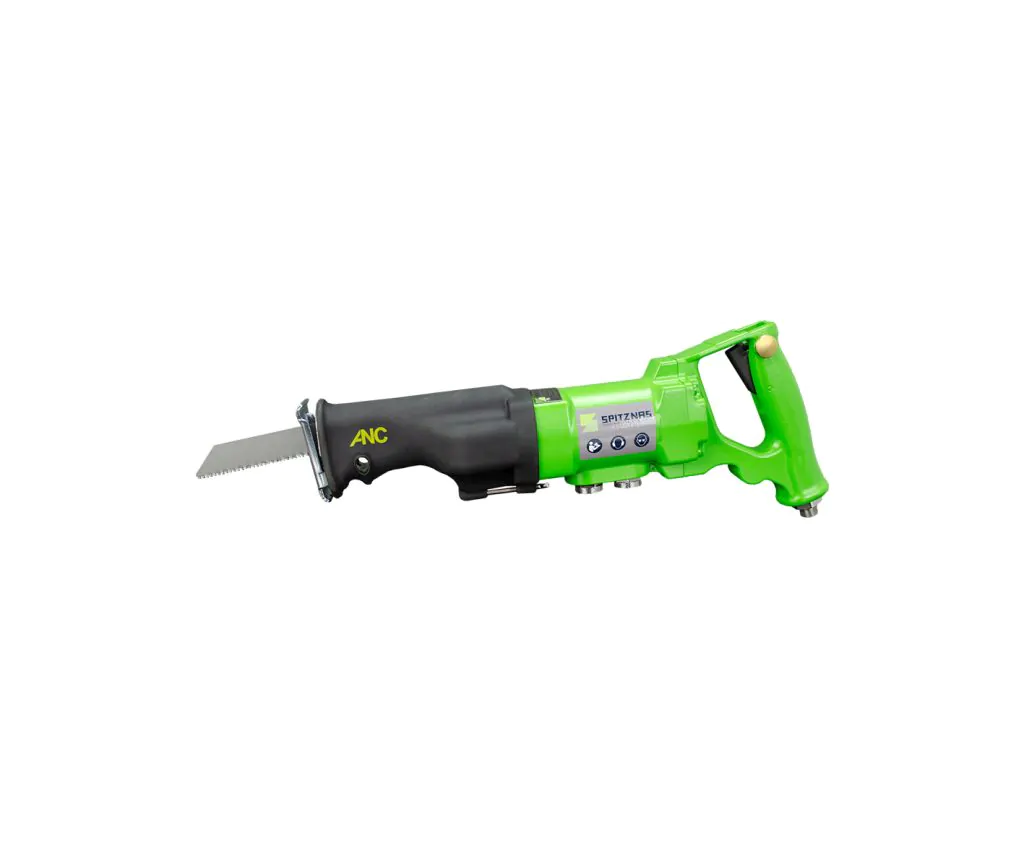

The ATEX pneumatic reciprocating saw is a lightweight saw for universal use, even in explosion-protected areas.
With a stroke length of 28 mm and a weight of 4.0 kg, the reciprocating saw is very handy and well suited for everyday use.
The saw is supplied with a carrying case.

ATEX: II2GExhIIBT5Gb

The SDS-plus rotary hammer with impact is used for drilling in concrete, stone and masonry.
The SDS-plus hammer drill without impact is suitable for drilling in wood, plastic, non-ferrous metals, cast iron, steel and stainless steel.

The hammer drill is ideal for use in the construction industry (new builds, conversions and renovations), workshops, the chemical industry / refineries and the nuclear industry.

Included in the scope of delivery:
Pneumatic rotary hammer
Operating and maintenance instructions
carrying case
Depth stop
Dust protection cap

ATEX: II2GExhIIBT6Gb

The ATEX pneumatic hammer drill enables drilling up to a diameter of 50 mm in concrete. The percussion mechanism can be switched on and off.
The hammer drill can also be used under water without any problems.

The saw is supplied with a transport case and a depth stop.

ATEX: II2GExhIIBT6Gb
