Barcode scanner

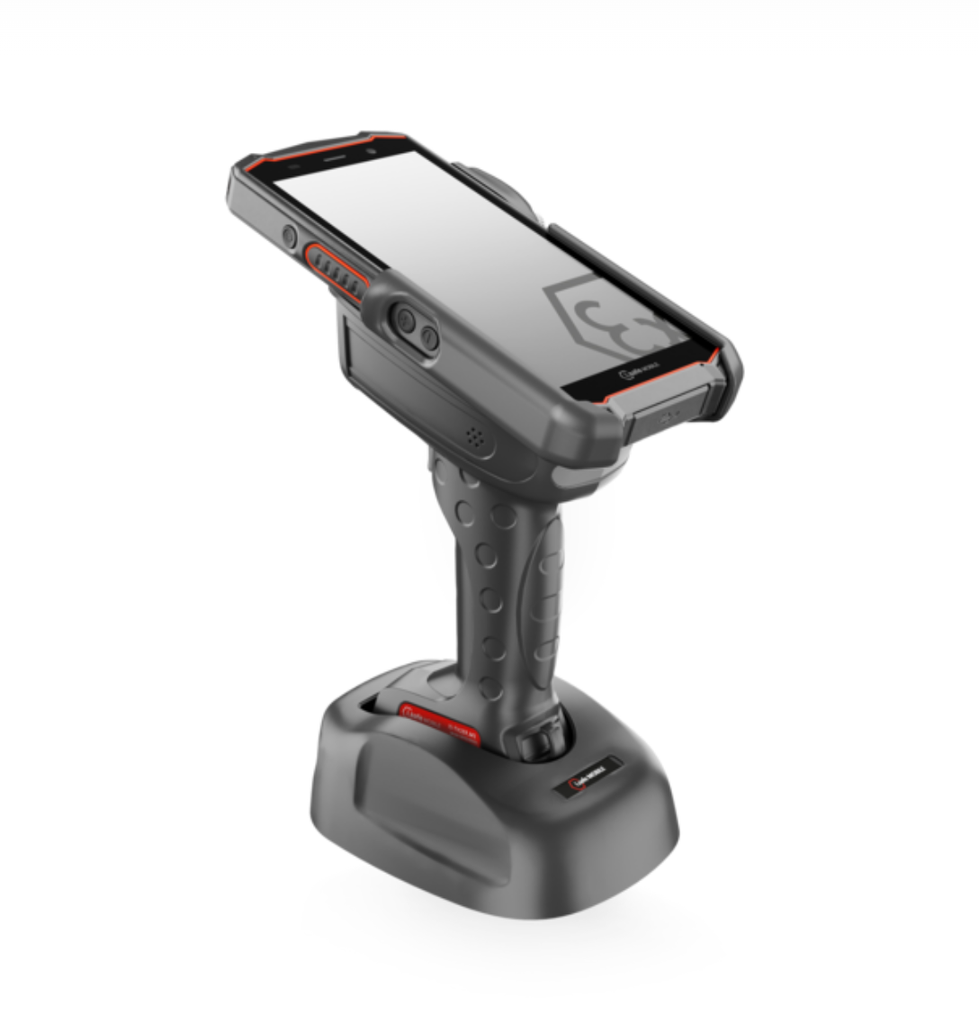

The mobile multifunction set consisting of a trigger handle (handheld barcode scanner) and the IS530.M1 industrial smartphone is a flexible combination for reliable data collection in Ex areas. The HID-active, ready-to-use high-performance scanner uses the reliable Zebra OEM imager scan engines to capture any 1D or 2D barcode at close range up to 6 meters or at distances up to 18 meters. The data is processed directly via the IS530.M1 smartphone coupled via ISM interface.

Desktop charger for charging the inserted IS530.1 in the trigger handle. This enables convenient charging without having to remove the IS530.1 from the trigger handle. The desktop charger has a charging indicator.
Size: 140 x 105 x 50 mm (L x W x H)

Retrofit of the Trigger Handle IS-TH1xx.x series with NFC film antenna. Reading NFC tags with integrated IS530.x is added by it.

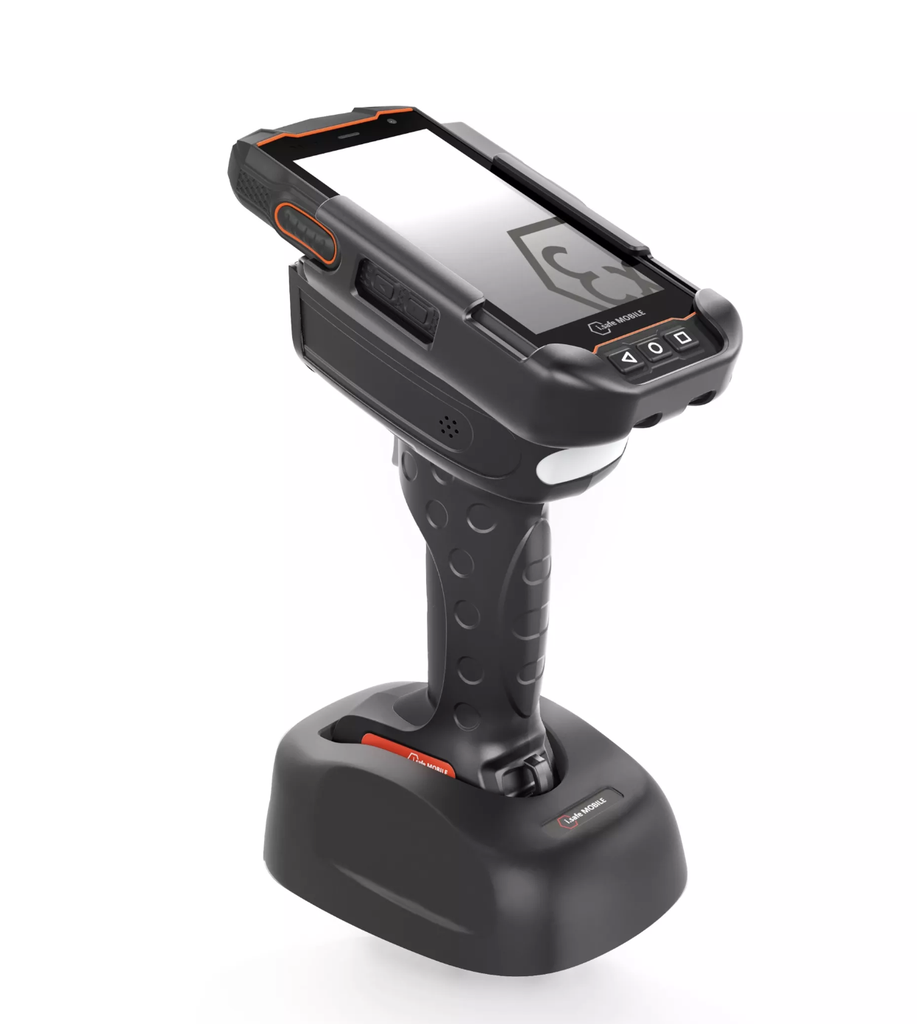

The combination of Trigger Handle and IS530.1 Ex-smartphone is a flexible and reliable solution for data collection in Ex-area Zone 1/21. The HID-active scanner captures barcodes at near or far range and transmits the data directly to the IS530.1 smartphone. This combination gives you the power of a high-end scanner and the reliability of a smartphone in a single device. Use the mobile multifunction set and increase efficiency in your Ex area.

The IS-TH1MR.2 is an accessory that, when combined with the IS530.2 smartphone, brings together two experts in their respective fields. On the one hand, Zebra, a market leader in the field of product traceability, and I.Safe MOBILE, the number one in the ATEX market
This barcode reader works in ATEX Zone 2, in the MR version for medium range, it can read 1D/2D barcodes up to a distance of 6 meters and the combination allows a secure smartphone with its features such as: touch screen, advanced connectivity (4G/GPS/WIFI/Bluetooth), with a very resistant barcode reader with an ergonomic design.

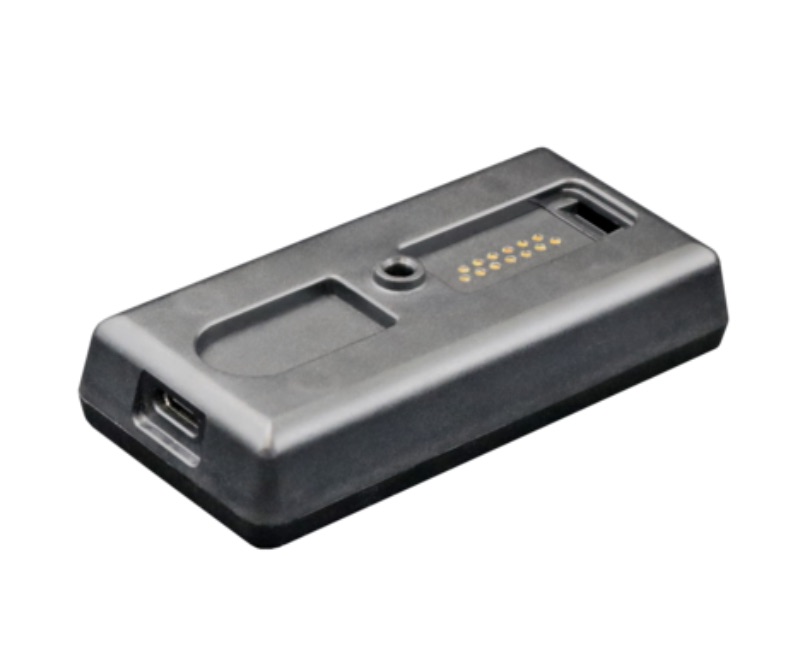

For connecting the IS-TH1xx.1 to a PC without using an IS530.1. For example, for programming the trigger handle with the Zebra 123 Scan Application.
Size: 80 x 40 x 16 mm (L x W x H).

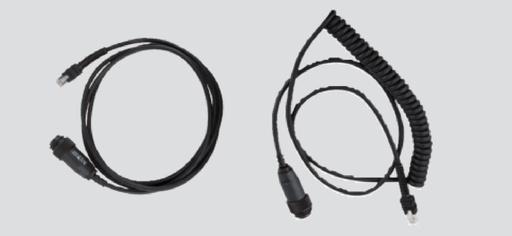

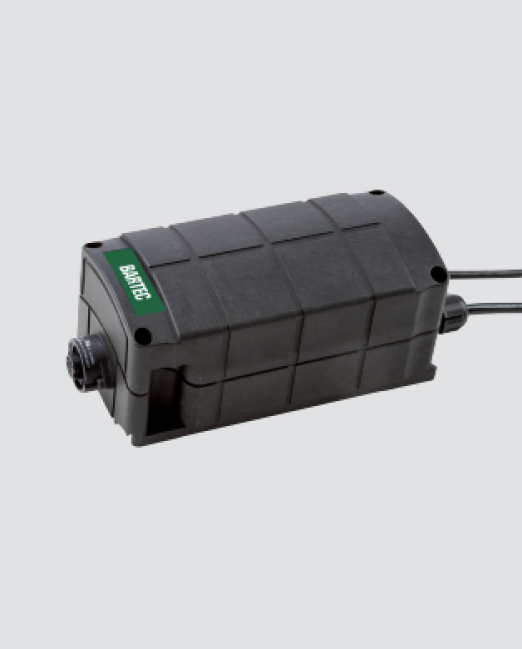

Connection between universal supply module and hand-held scanner BCS 3608ex NI

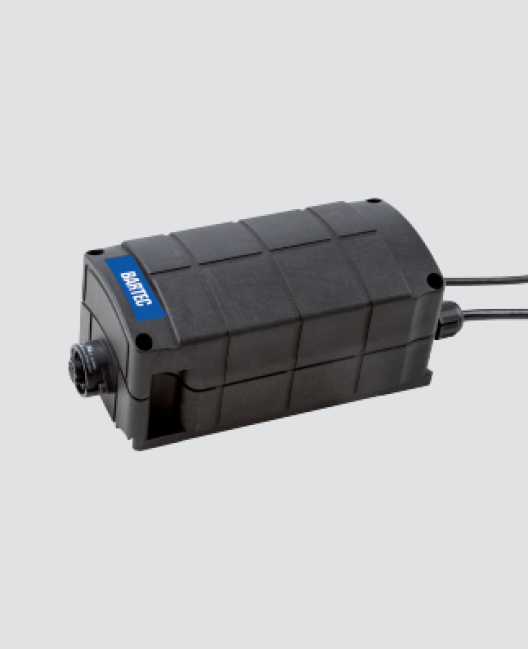

The universal supply module is wired and is used for the intrinsically safe supply of the scanner.
Interfaces (Ex e version):
RS232, RS422, RS485, USB

Important information: USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported.

The universal supply module is wired and is for Bluetooth wireless connection to the hand-held scanner.
Interfaces (Ex e version):
RS232, RS422, RS485, USB

Important information: USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported.

The universal supply module is wired and is used for the Bluetooth wireless connection to the hand-held scanner.
Interfaces (Ex e version):
RS232, RS422, RS485, USB

Important information: USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported.

RS232 (5V power supply)
(e.g. for connection to BARTEC Polaris HMI).

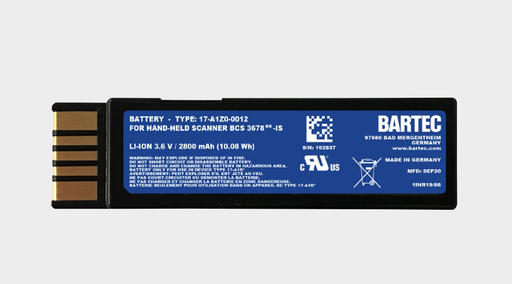

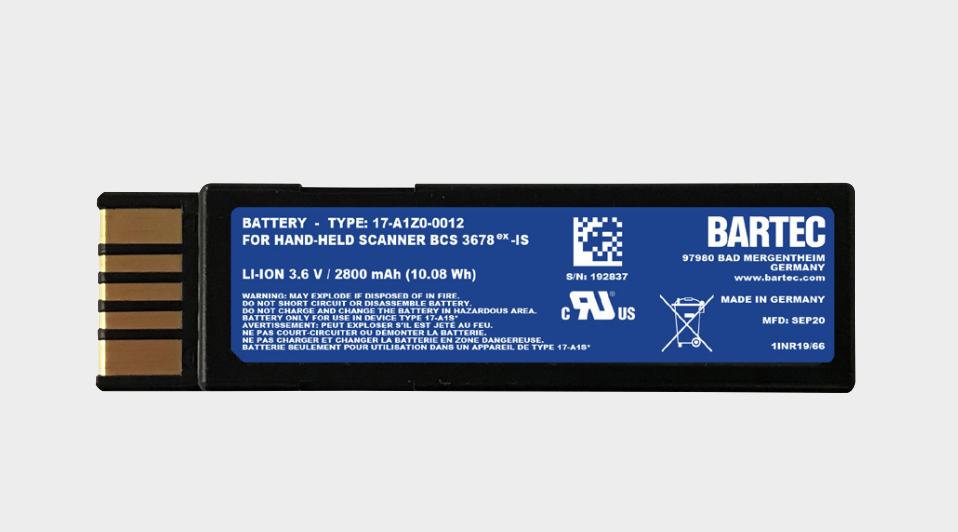

The 17-A1Z0-0012 rechargeable battery is approved in combination with the BCS 3678ex IS hand-held scanner. Lithium-ion battery 3.6 V/2800 mAh (10.08 Wh).
The battery may only be changed and charged outside potentially explosive atmospheres.

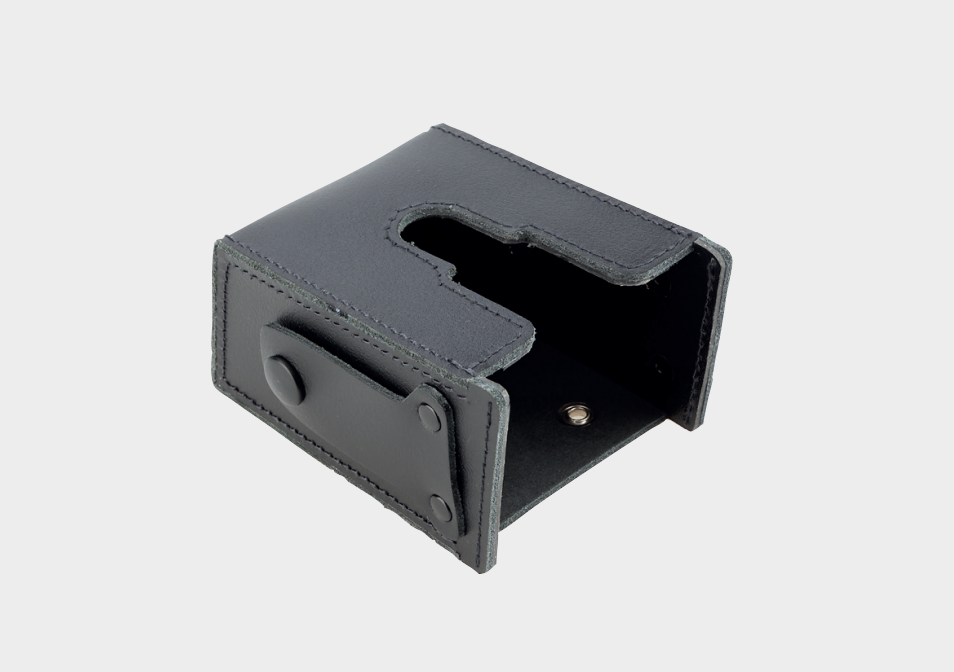

Das Lederholster besteht aus robustem Leder in Industriequalität und dient zur Befestigung an Gürtel oder Wand.
Farbe: schwarz

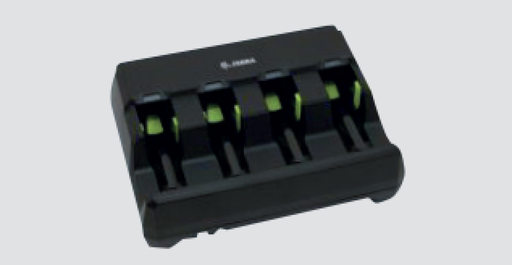

The input voltage is DC 12 V (50 W) and charging is indicated by LED and sound.
A power supply unit with DC connection cable and an AC power cable are also required, as these are not included in the scope of delivery.

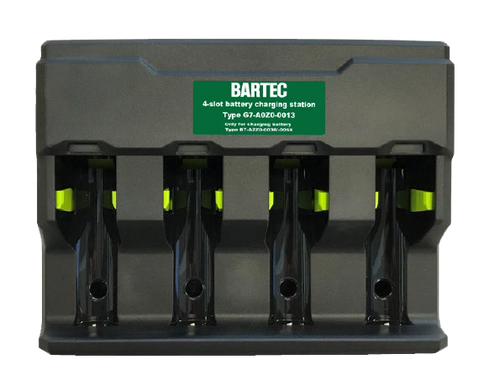

The 4-way battery charging station is only suitable for use outside potentially explosive atmospheres.

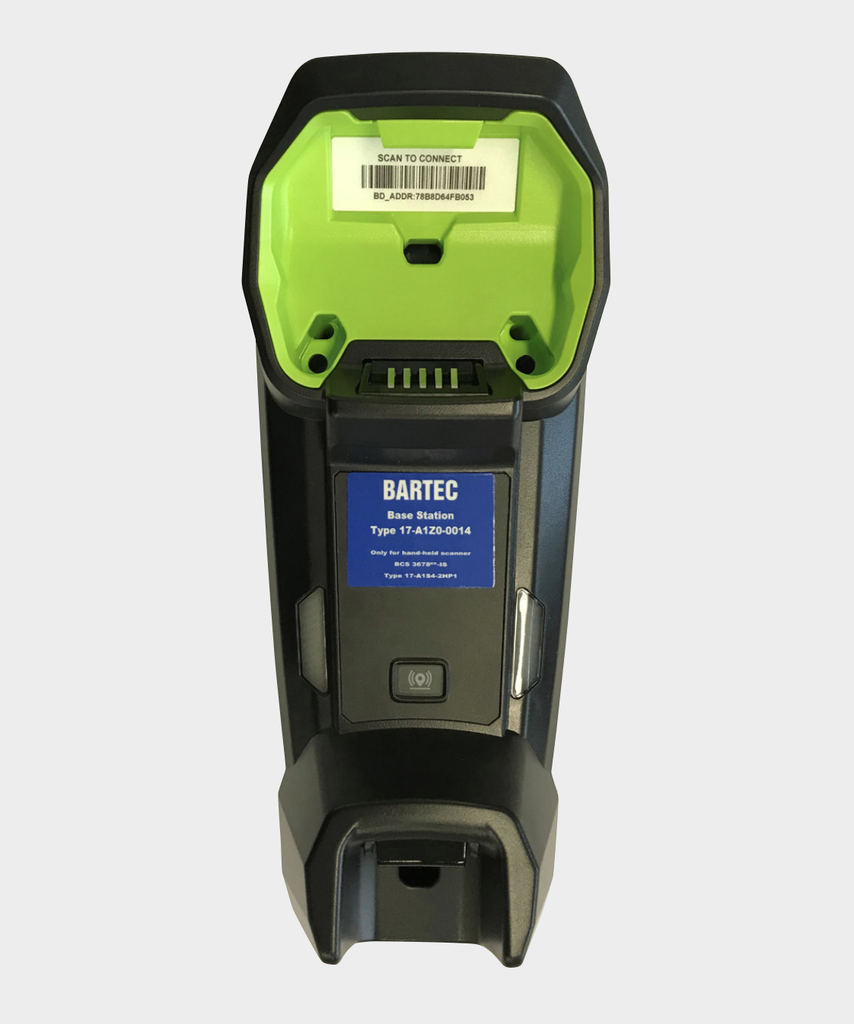

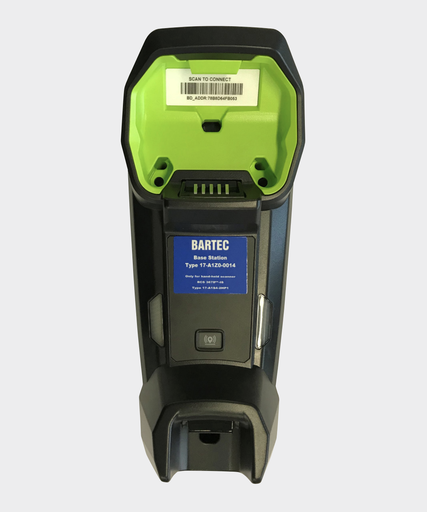

The base station for hand-held scanners BCS 3678ex IS has an input voltage RS232, DC 12 V (50 W) and an input voltage USB: 12 V.
The base station is compatible with up to 7 scanners and has a charging indicator via LED IP 65.

The power supply unit with DC connection cable, the AC power cable and the connection cable are not included in the scope of delivery and must be purchased separately.

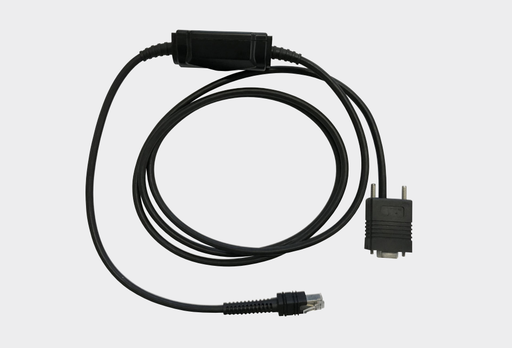

The RS232 connection cable is a connection between the base station and the PC with a connection for 12 V power supply.
Dimensions of the RS232: 1.9 m (smooth).
The power supply unit with DC connection cable (G7-A0Z0-0019) and the AC power cable are not included in the scope of delivery and must be ordered separately.

The RS232 connection cable is a connection between the base station and the PC with a connection for 12 V power supply.
Dimensions of the RS232: 4.5 m (smooth).
The power supply unit with DC connection cable (G7-A0Z0-0019) and the AC power cable are not included in the scope of delivery and must be ordered separately.

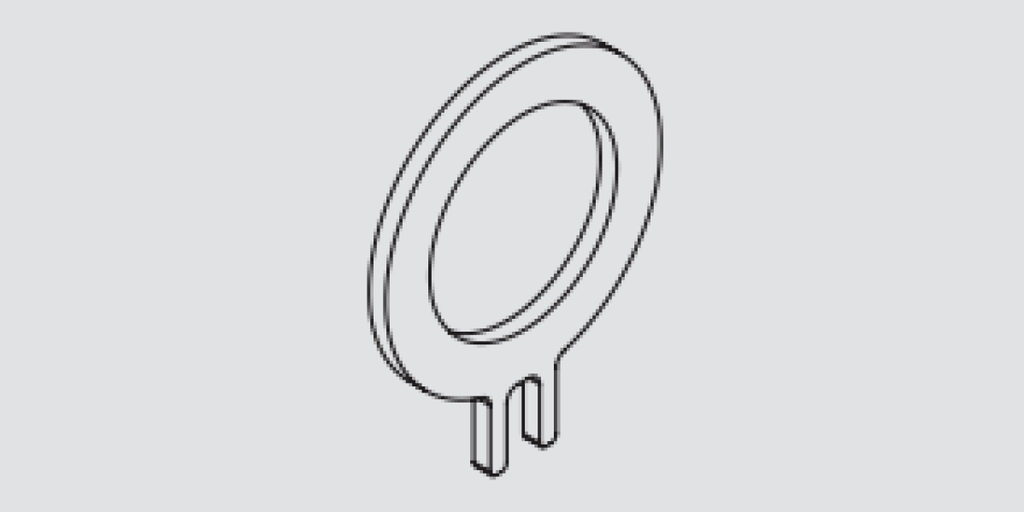

The special tool is used to open and lock the safety lock.
Contents: 5 pieces.

The universal supply module is used for the intrinsically safe supply of the scanner.
Interfaces (Ex e version):
RS232, RS422, RS485, USB

Important information: USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported.

Special features:
- for Bluetooth wireless connection to the hand-held scanner
- Interfaces (Ex e version):
RS232, RS422, RS485, USB

Important information: USB only works as SPP (Serial Port Profile), HID (Human Interface Device) is not supported.
