Communication

The housing of the lamp is made of aluminum.
It can be attached to the wall with 2 screws.
The dimensions are 140x125.7x242 mm and the lamp weighs approx. 2.7 kg.
The lamp can be used at an ambient temperature of -40°C to +60°C.

Additional options:
- Different colors of the flashing light (red, blue, green,
yellow)
- Different colors of the housing (on request)

The waterproof flashlight is made of polycarbonate, which is additionally reinforced with 20% glass fiber.
The beacon cover is transparent and the lamp can be mounted on the wall with 2 bolts.
The cross-section of the cable entries is Ø5 - Ø12 mm and the cable type can be solid or stranded, maximum 1.5 mm².
The dimensions are 141x141x205 mm and the lamp weighs 0.75 kg.
The lamp can be used in the temperature range from -40°C to +70°C.

The waterproof flashlight is made of polycarbonate, which is additionally reinforced with 20% glass fiber.
The cover of the beacon is transparent and the lamp can be mounted on the wall with 2 bolts.
The cross-section of the cable entries is Ø5 - Ø12 mm and the cable type can be solid or stranded, maximum 1.5 mm².
The dimensions are 141x141x205 mm and the lamp weighs 0.75 kg.
The lamp can be used in the temperature range from -40°C to +70°C.

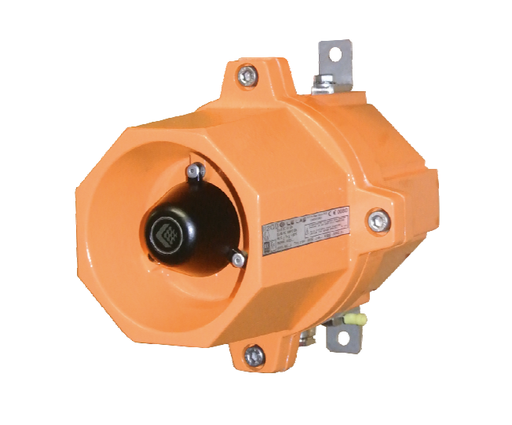

The explosion-proof siren has an output of 230 VCA depending on the model.
The siren signals are adjustable and can emit 1 or 2 tones.
The siren is made of an aluminum alloy.
It can be mounted on the wall using 2 screws.
The dimensions are 214x193x223 mm and the siren weighs approx. 5 kg.

Possible additional options:
- Other colors on request
- 4 cable entries
- Wall mounting bracket

The siren signals are adjustable and can emit 1 or 2 tones.
The siren is made of an aluminum alloy.
It can be mounted on the wall using 2 screws.
The dimensions are 214x193x223 mm and the siren weighs approx. 5 kg.

Possible additional options:
- Other colors on request
- 4 cable entries
- Wall mounting bracket

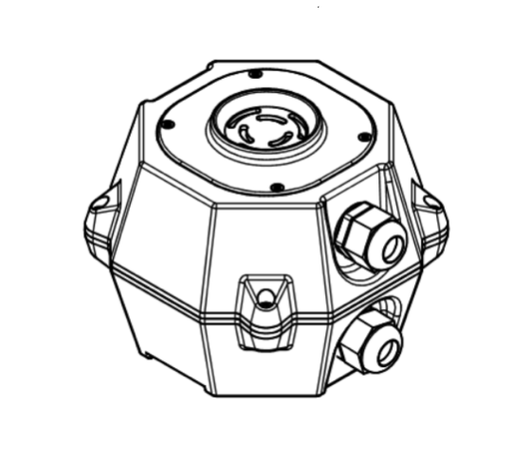

The sirens have been specially developed for operation in harsh industrial environments, even under extreme conditions such as temperature, humidity and other hazards.
The housing and bezel are made of 20% fiberglass polycarbonate, and an optional stainless steel mounting bracket can be purchased.
Weather resistance is ensured by a set of 4 hollow hexagonal screws.

The sirens function in an operating temperature range of -30°C to +60°C.

The following is included in the scope of delivery:
- 1 sealing cap
- 2 cable entries (∅5 to/to 12 max)
- 2 washers (waterproof)
- 2 nuts
- 4 sealing caps

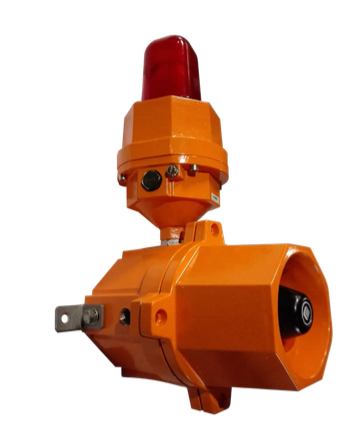

The explosion-proof siren provides protection against dust and moisture (IP 66).
It is made of a protective coating and is manufactured from an aluminum alloy.
The siren can be mounted on the wall on 2 bolts and the bracket for wall mounting can be purchased separately.
There are 2 cable entries for cables with a diameter of 7-12 mm.
The luminaire is covered with a safety glass with grille.
The dimensions are 214x223x402.5 mm and the weight is approx. 8 kg.

Other possible options are:
- Other housing colors on request
- Lighthouse color: red, blue, yellow, green, orange
- Bracket for wall mounting

The explosion-proof siren provides protection against dust and moisture (IP 66).
It consists of a protective coating and is made of an aluminum alloy.
The siren can be mounted on the wall on 2 bolts and the bracket for wall mounting can be purchased separately.
There are 2 cable entries for cables with a diameter of 7-12 mm.
The luminaire is covered with a safety glass with grille.
The dimensions are 214x223x402.5 mm and the weight is approx. 8 kg.

Other possible options are:
- Other housing colors on request
- Lighthouse color: red, blue, yellow, green, orange
- Bracket for wall mountin

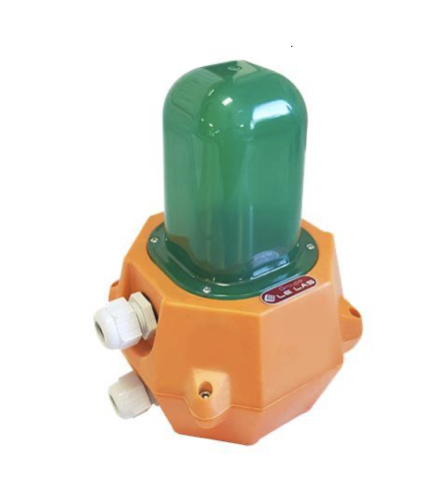

SGV409 are designed for operation in harsh industrial environments, even under extreme temperature and humidity conditions and other hazards.
The housing is made of 20% fiberglass polycarbonate, with an optional stainless steel mounting bracket available for purchase.
Weather protection is provided by a set of 4 hollow hexagonal stainless steel screws. Easy connection via removable screw terminals.

The howler can be used at operating temperatures from -40°C to +70°C without affecting its properties. The weight of the product is 0.75 kg.

Important information on mounting:
The SGV409 is attached at two points (horizontal axis 75mm or vertical axis 72mm).
Drill all holes at the points indicated below using a drill with a maximum diameter of 6.5 mm.
It is essential that the plugs are fitted at the points where the screws are located.

The SGV409 cable entries are supplied in a plastic bag with a sealing cap. This should also contain
- 1 sealing cap
- 2 cable entries (5 to 12 mm diameter)
- 2 weatherproof washers
- 2 nuts
- user manual

The explosion-proof dispatch communication device is made of an aluminum alloy.
The dimensions are 215 x 300 x 190 mm and the weight is 8.6 kg.
A reinforced flange module can be purchased as an option.

The supply voltage is 12v DC or Ethernet and the audio signal is >100 dB / 1 m.

The NHA214HBM explosion-proof dispatch communication device has one communication button. It is made of an aluminum alloy, weighs 8.6 kg and measures 215 x 300 x 190 mm.

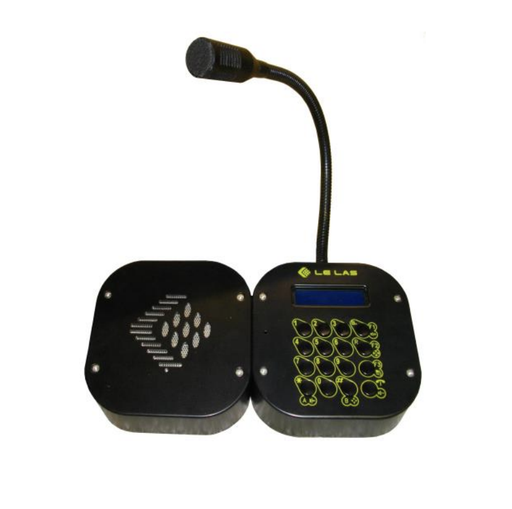

The housing of the industrial desktop intercom is made of an aluminum alloy with an anti-corrosion coating.
The IP54 degree of protection protects the device against the ingress of dust and moisture.
The operating temperature range is -20°С to +60°C.
The dimensions are 150х300х102 mm and the weight is cica 2.3 kg.

intrinsically safe galvanic ultra-wideband RF isolator
for use in potentially explosive atmospheres.
Specification:
– housing material: anodized aluminum
– dimensions: 57 x 28 x 13 mm
– weight: approx. 38g
– operating temperature range: -60°C to +80°C
– Input/output connections: 2x SMA female

Ex nA [Ex ia Ga] IIC T6 Gc
Ex ic [Ex ia Da] IIIC T85°C Dc
[Ex ia Ma] I
II 3 (1) G D
I (M1)
-40 °C ≤ Ta ≤ +80 °C

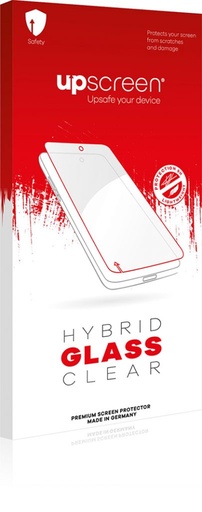

upscreen Hybrid Glass Clear Premium Panzerglasfolie für RugGear RG540
Einzelverpackung

The Ex-Handy 10 is a 4G/LTE push-button cell phone with Android™ 9, touchscreen, 8 MP camera, IP68, Gorilla® Glass and explosion protection for demanding environments.

Package contents
- Pixavi Phone - Intrinsically safe smartphone
- Lithium-ion battery 3.8 V/3200 mAh (12.16 Wh)
- Quick start guide (EN)
- Qualcomm fast charger

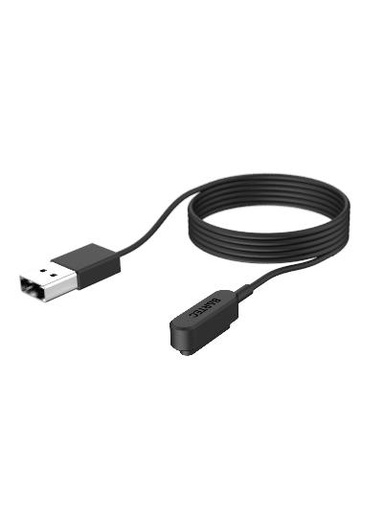

- USB 2.0 magnetic charging cable
- Battery tool
- SIM card holder

approval:
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP68

compatible with RG880
