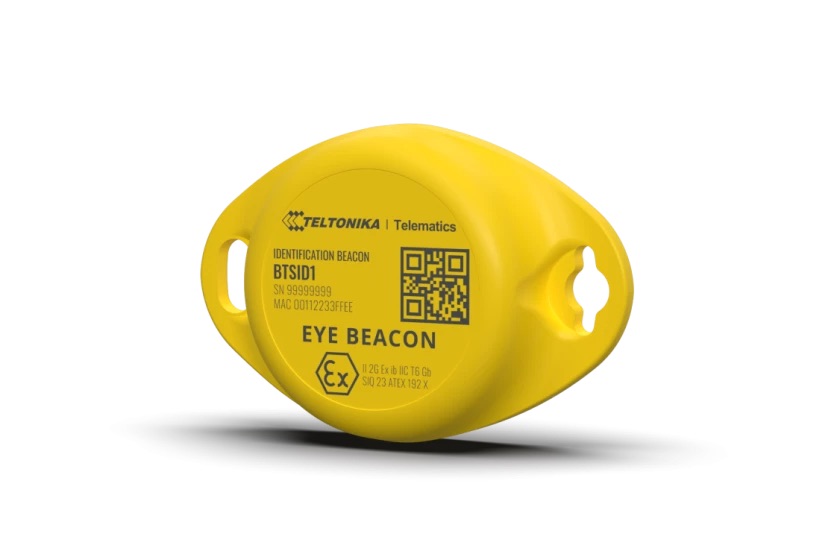

FARO ATEX STANDARD

Segnalatore ID Bluetooth® per il monitoraggio dei beni in ambienti pericolosi.

Caratteristiche

     Beacon ID: Yes.

     Sensors: Magnetic detection

     Scenarios: tool tracking, RSSI indoor tracking, device tracking, mobile object tracking, medical device tracking, smart agriculture, smart manufacturing

     Idle mode: idle state

     Configuration and firmware update: EYE APP

Elettronica

     Mikrocontroller: ST Mikroelektronik BlueNRG-2

connettività

     Bluetooth®: Bluetooth® 4.2

     Range: 80 meters

     Transmitter power level: up to 8 dBm

     Sensitivity: -88 dBm

Batteria e alimentazione

     Type: lithium/manganese dioxide

     Capacity: 600 mAh

     Battery life: 4 years (Tx=2dBm; interval 3s)

                          8 years, (Tx=2 dBm; interval: 5s), DEFAULT

                        10 years (Tx=2dBm; interval 10s)

specifiche fisiche

     Dimensions: 56.6 x 38.0 x 13.0 mm (L x W x H)

     Weight: 18 g

Allegato:

     Protection class: IP67

     Attachment: two attachment points on each side

     Labeling: Available with customized branding on request

requisiti ambientali

     Operating temperature: -20 °C / +60 °C (-4 °F / +140 °F)

     Humidity (non-condensing): 0% to 100%

Compatibilità del protocollo

     iBeacon: Yes*

                     *EYE APP on iOS does not show devices with iBeacon protocol

     Eddystone: Yes.

     Sensors (user-defined): Yes

Certificazione & approvazioni

     Certificates ATEX Zone 1 II 2G Ex ib IIC T6 Gb
